Estimation and Costing (General Engineering) (SSC JE)

Total Questions: 36

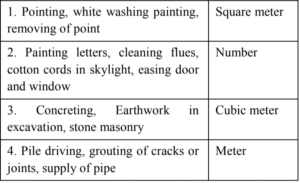

31. The MKS unit of measurement for removal of colour, paints or varnish of building is – [JSSC JE (GEN. ENGG.)- 03.07.2022 ]

Correct Answer: (d) square meter
Solution:

32. 100 m³ of brick work, sand-cement mortar requirement is about [BPSC AE (GEN. ENGG.)-2001 ]

Correct Answer: (a) 35 m³
Solution:Volume of brick with mortar = 200 × 100 × 100 (10 mm mortar thickness on all sides)
Volume of brick with mortar = 0.002 cum(m³)
Volume of 1 brick without mortar = 0.001535 cum(m³)
Volume of 500 bricks without mortar = 0.1539 m³
Volume of brick without mortar for 1 cum = 0.7695 cum(m³)
Volume of brick without mortar = 1 – 0.7695 = 0.2305 cum(m³)
Dry mortar = 0.2305 × 1.51 = 0.348 cm
For 100 m³ brick mortar required–
= 100 × 0.348 = 34.8 cum
= 35 m³

33. The cement to dry sand proportion recommended for plastering concrete surface is [BPSC AE (GEN. ENGG.) 15.09.2018 ]

Correct Answer: (a) 1 : 3
Solution:

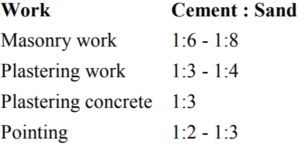

Proportioning–The cement to dry sand proportion recommended for various works is as shown in table.

34. According to IS 1200, during demolition and dismantling, the concrete and brick roofs and floors shall be measured in : [RRB S.S.E. 03.09.2015 (Shift-II)]

Correct Answer: (b) Cubic meter
Solution:

As per IS : 1200–
 Method of works, required to be demolished and those required to be dismantled shall each be measured separately.
• During demolition and dismantling, the concrete and brick roof and floor shall be measured in cum.

35. According to IS 1200, granular sub-base used in............construction shall be measured as finished work in position in : [RRB S.S.E. 01.09.2015 (Shift-III) ]

Correct Answer: (c) Cubic meters
Solution:

According to IS : 1200, granular sub-base used in construction shall be measured as finished work in position in cubic meters.

36. For residential plot area from 500 to 1000m² , what is the minimum area to be reserved for parking? [JSSC JE (GEN. ENGG.)-23.10.2022 ]

Correct Answer: (d) One-fourth of the open area
Solution:

For residential plot area from 500 to 1000 m2 , the minimum area to be reserved for parking should be one-fourth of the open area.
