Fluid Mechanics (Part-3) (General Engineering) (SSC JE)

Total Questions: 50

21. The viscosity of a gas– [RRB JE 26.08.2015 (Shift-II) ]

Correct Answer: (b) Increases with increase in temperature
Solution:

Viscosity of gas–Viscosity of gas increases with increase in temperature due to molecular momentum exchange (MME) while viscosity of liquid decreases with increase in temperature.

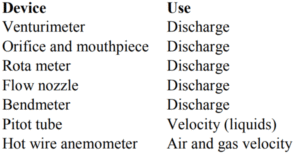

22. Which of the following device is not used to measure the rate of flow : [RRB JE 27.08.2015 (Shift-II) ]

Correct Answer: (b) Pitot tube
Solution:

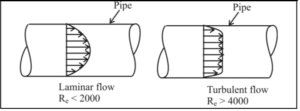

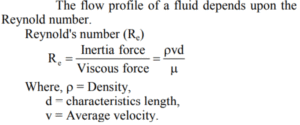

23. The flow profile of a fluid depends upon : [RRB JE 27.08.2015 (Shift-II) ]

Correct Answer: (c) The Reynold number
Solution:


24. Absolute pressure in flow system– [RRB JE 27.08.2015 (Shift-III) ]

Correct Answer: (c) May be above, below or equal to the local atmospheric pressure
Solution:

Absolute pressure in flow system may be above, below or equal to local atmospheric pressure.
• It is necessary to establish an absolute pressure scale which is independent of the changes in atmospheric pressure.
• Any pressure measured above the absolute zero pressure is termed as an absolute pressure.

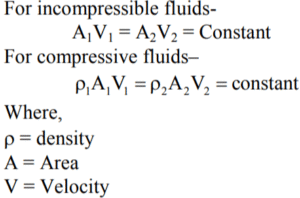

25. Equation of continuity is based on the principle of conservation of– [RRB JE 27.08.2015 (Shift-III) ]

Correct Answer: (a) Mass
Solution:

The continuity equation simply states that the total accumulation of mass from all phases is equal to the net flow of mass into the control volume plus the net amount of mass that enters the control volume from a source such as a well. This equation is based on principle of conservation of mass.

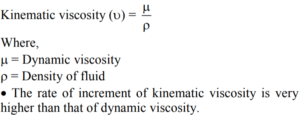

26. Kinematic viscosity of gases on increase of temperature [RRB JE 27.08.2015 (Shift-I) ]

Correct Answer: (b) Increases
Solution:

Kinematic viscosity of gases on increase of temperature increases because of increase in dynamic viscosity due to molecular collision

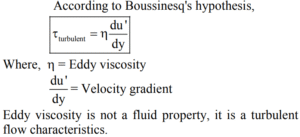

27. The eddy viscosity for turbulent flow is [RRB JE 27.08.2015 (Shift-I) ]

Correct Answer: (c) Dependent on the flow
Solution:

28. Milk mixes with water due to– [RRB JE 28.08.2015 (Shift-I) ]

Correct Answer: (b) Very good adhesion
Solution:

Attraction force between different molecules is known as adhesion. The mixing of other substances with water depends on the emulsion property which allows it to mix with water. The emulsion property of milk provided it very good adhesion.

29. An ideal fluid– [RRB JE 28.08.2015 (Shift-I) / RSMSSB JE (E&M) Degree - 26/12/2020 ]

Correct Answer: (b) is both incompressible and non-viscous
Solution:

Ideal fluid–Those fluids which are incompressible and non viscous with infinite bulk modulus, known as ideal fluids. Ideal fluids do not obey Newton's law of viscosity. Properties–
(i) Density of fluid is constant
(ii) Zero surface tension and frictionless
(iii) No shear resistance
(iv) Particle of fluid should be irrotational

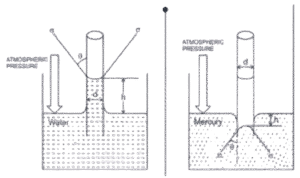

30. Capillarity of liquid in small-diameter tubes is due to molecular attraction. In case of Mercury, the following occurs in terms of capillarity [RRB S.S.E. (Secunderabad) 02.09.2015 (Shift-I) ]

Correct Answer: (b) Capillary depression
Solution:

Mercury is a liquid that shows a capillary depression.
Capillary depression - cohesion > Adhesion.
In case of mercury, cohesive forces are higher as compare to adhesive forces. Therefore, the molecules of mercy are more attracted towards its own molecules than the capillary walls. So, level of mercury will wall.
